SHOCKWAVE PRO - 1000

SHOCKWAVE PRO - 1000


SHOCKWAVE PRO - 1000

Advanced Pneumatic Radial shockwave therapy Extracorporeal shockwave therapy

Myofascial Triggers

Myofascial Triggers

Trapezitis

Trapezitis

Calcific Tendinitis

Calcific Tendinitis

Adhesive Capsulitis

Adhesive Capsulitis

Plantar Fasciitis

Plantar Fasciitis

Lateral / Medial Epicondylitis

Lateral / Medial Epicondylitis

IT Band Stiffness

IT Band Stiffness

Gluteus Triggers

Gluteus Triggers

Technical Specifications

Functional Data
Shock Intensity 1.0 – 5.0 Bar
Shock Frequency 1 – 20 Hz
Therapy period 0 – 9999 Shocks
Resolution Intensity 0.1 Bar / Frequency 1 Hz
Shockwave Applicators
Applicator-1 (TD 20): 20 mm Dia – For Large Group of Muscles
Applicator-2 (TD 15): 15 mm Dia – For Small Group of Muscles

Technical Specifications

Input Voltage 220 – 240 V AC, 50 Hz
Power Consuption 800 watts
L x B x H 17in x 12in x 38in
Weight 20 Kgs

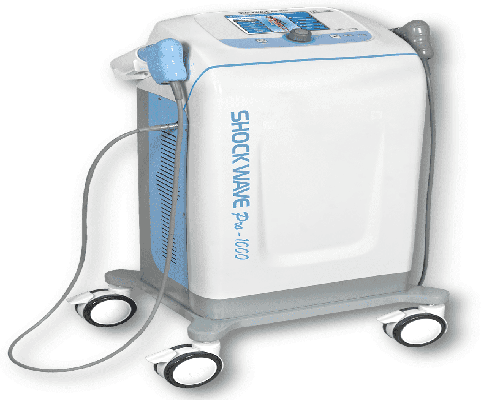

Shockwave Pro - 1000 is Indias 1st Advanced Pneumatic Radial Extracorporeal Shockwave Therapy Machine. The most easy to use and extremely effective shockwave machine at a very attractive price brought to you by Technomed Electronics. Call us for a Demo Now!


Myofascial Triggers, Muscle Knots, Taut Bands, Calcific Tendons, Tendinitis, Soft Tissue Adhesion, Triggers in Gluteus, Piriformis and other large group of muscles, IT Band Stiffness and many other conditions can be treated in just 1-3 sittings.


Shockwave Therapy is a great machine even for manual therapists as it saves their hands and also a lot of your energy and time. This fine and effective way to break adhesions is a much needed device in every clinic.

ADVANCED PNEUMATIC RADIAL SHOCKWAVE THERAPY


Why Pneumatic Shockwaves are the Best for Physiotherapy?

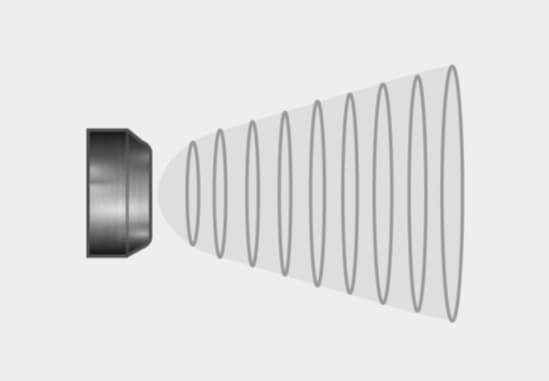

Pneumatic Shockwave Therapy produce Radial shockwaves. They are called Soft Shockwaves and penetrate deep and effectively without focussing energy at a single point. This is the best and most effective technology used in pain management. Patients feel very comfortable during the treatment and pneumatic shockwaves have much wider range of applications.

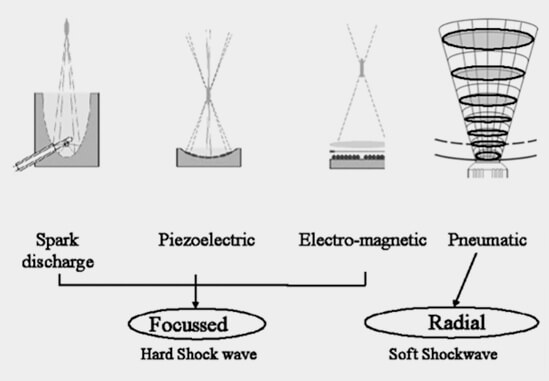

Other methods of generating shockwaves employ – Electromagnetic. Piezo Electric and Spark Discharge methods. These shockwaves are focussed waves are essential for 'surgical' interventions, but given their destructive nature, they are less appropriate for therapeutic uses. Electromagnetic shockwaves are small table top low cost machines. Eventually they don’t last long and also need frequent maintenance as they heat up. Also the therapeutic efficacy is not comparable to the advanced Pneumatic shockwave machines.

Product Highlights

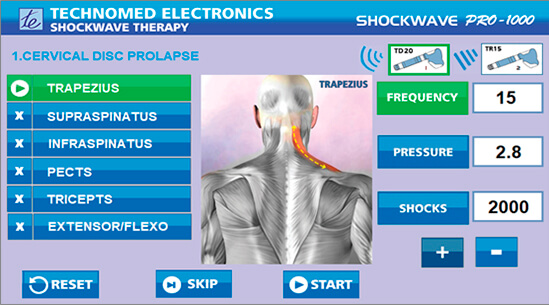

First Guidance Based Shockwave

  • * Step by step guidance of all muscle groups to treat
  • * User can modify or skip any step
  • * Automatic selection of applicator

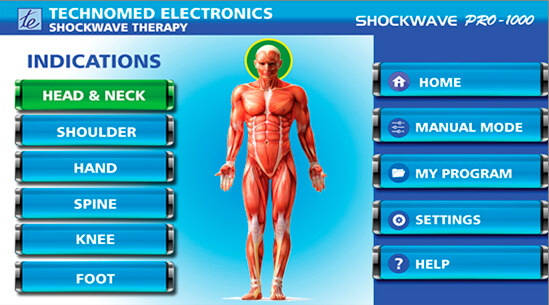

Easy to use touch interface

  • * Easy to use touch interface
  • * Indications by regions
  • * Exhaustive list of indications

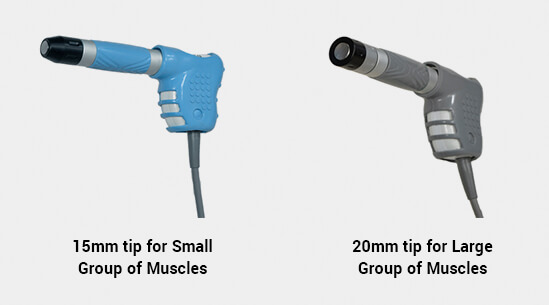

Two Different Applicators

(No Need to Change Tips During Treatment)

TD20 Applicator

It is useful in treating large of muscles.It produce more dispersed shockwaves and vibratory effects. Very Effective on Myofasical triggers and treatment of deep-seated/large muscle group like gluteus, piriformis, paravertebral and trapezius muscles.

Tr15 Applicator

It is useful in treating smaller group of muscles.It produce more concentrated shockwaves hence effective on trigger pain, tendinopathy and epicondylit.
