True Decompression Therapy

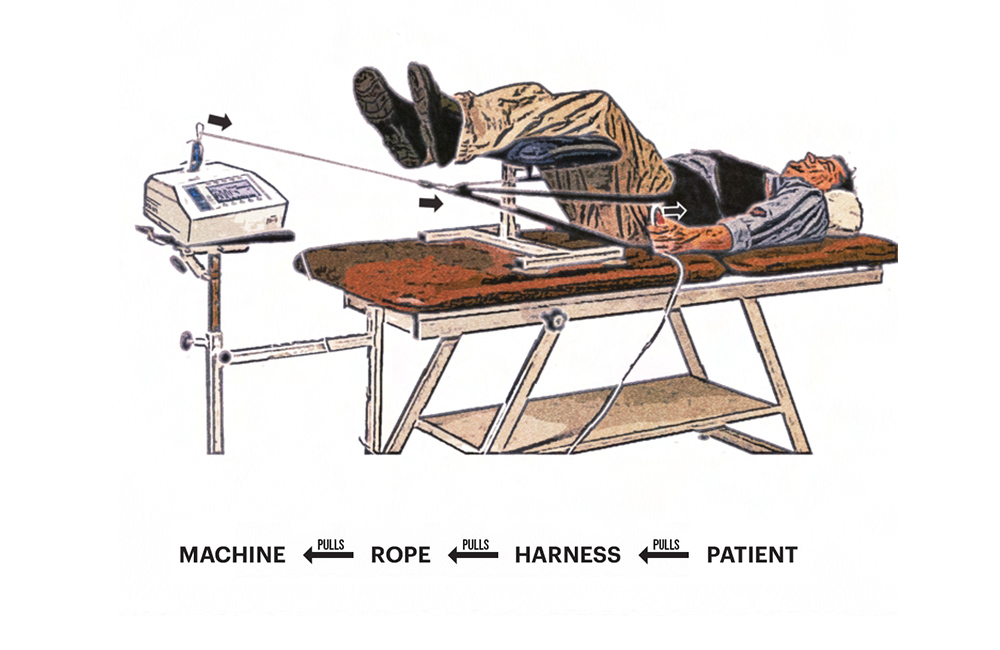

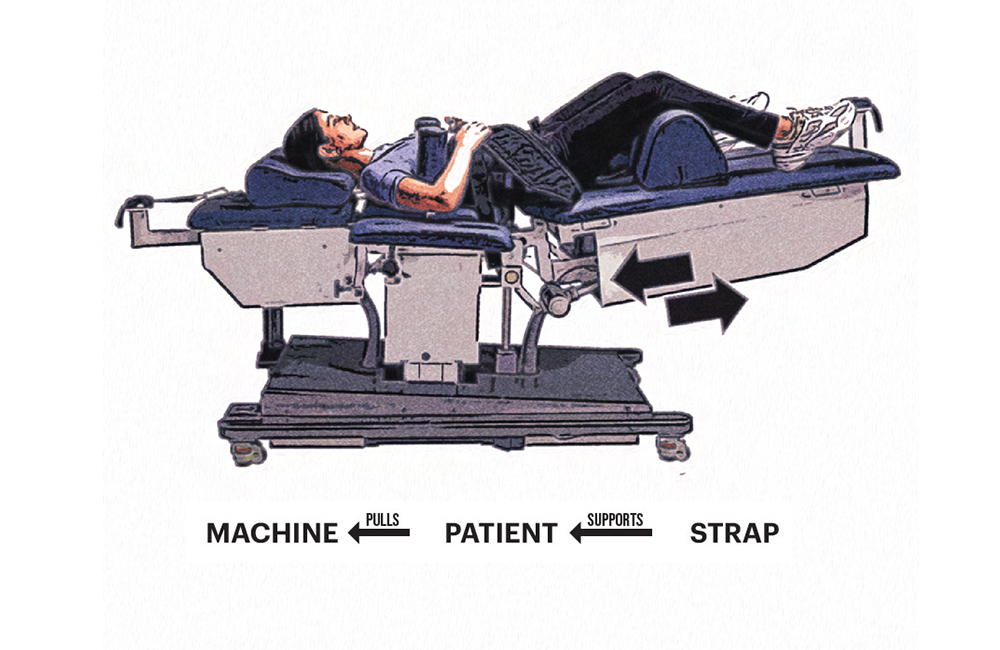

A True Decompression therapy powered by separate motorised lumbar and cervical section exerts decompression force directly on the patient which is remarkably better than conventional belt or rope driven decompression system which suffers hysteresis losses as the rope pulls the patient through the harness. In Robospine 100 the pull is so smooth and so controlled that the patients tend to fall asleep.

Modes

Cervical Mode

Lumbar Mode

Mobilization

Recall Mode

Technical Specifications

Adjustable Height (Inches)	23 to 30
Cervical Decompression Force	5-15 Kgs ( 1 Kg Increment)
Cervical Flexion Range	-5° to 20°
Lumbar Decompression Force	15-90 Kgs ( 1 Kg Increment)

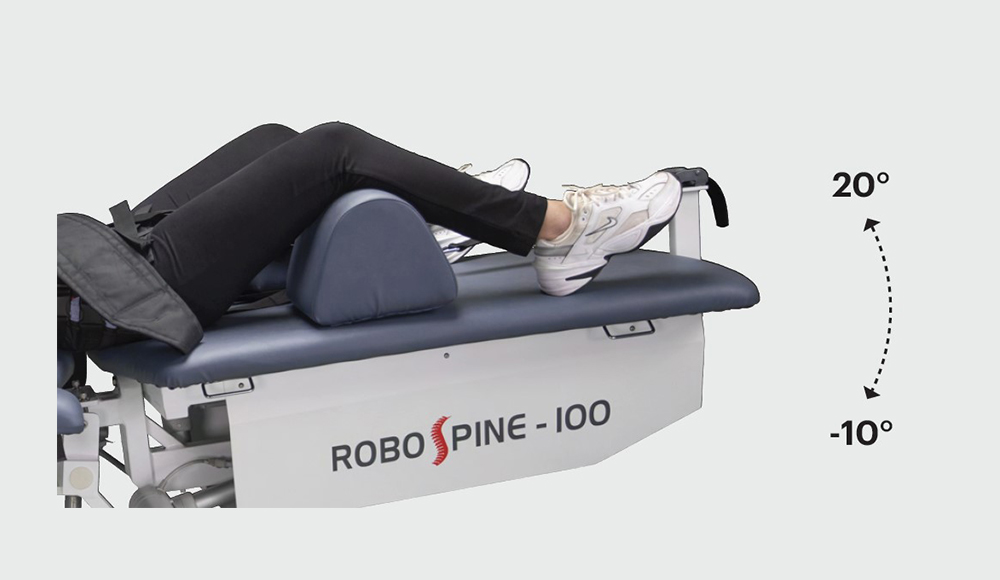

Pelvic Flexion Range	-10° to 20°

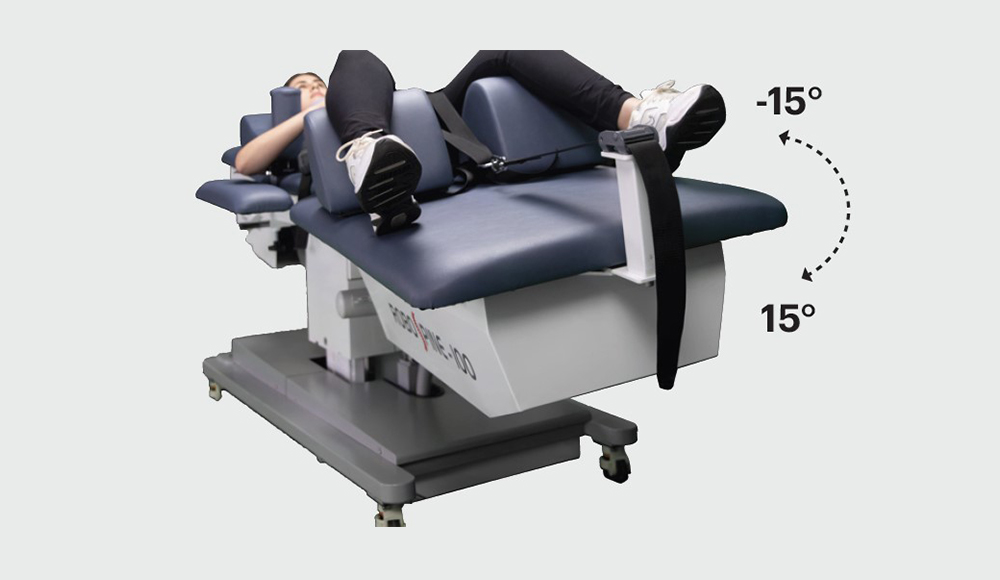

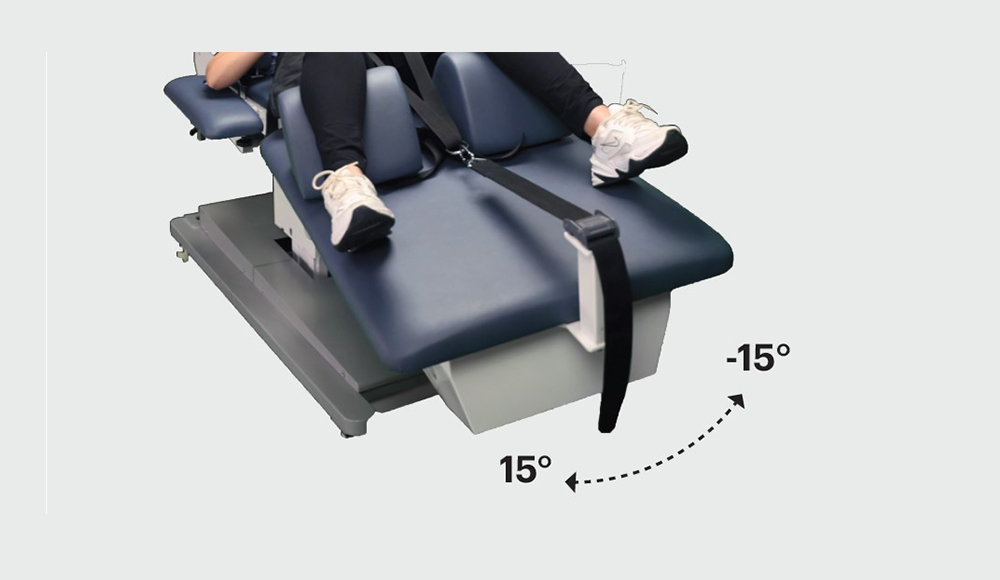

Lateral Flexion Range	-15° to 15°
Axial Rotation Range	-15° to 15°
Dimensions LxBXH (Inches)	96x40x30
Total Weight	220 Kgs

Benefits of Having Robospine - 100

Thousands of Patients with disc-related injuries in your area can be treated successfully.
Decompression is great for older patients who don't tolerate painful treatments.
Spinal Decompression offers most advanced facilities, a great advantage to your clinic.
Most chronic spinal conditions can be easily treated with our Spinal Decompression therapy system.
Choose from a list of Guidance based Indications and treat your patient. The machine will automatically suggest treatment parameter changes as the treatments progresses. You can also create your own treatment program and simply recall the treatment every time.

Product Features

HEAD HALTER FOR CERVICAL DECOMPRESSION

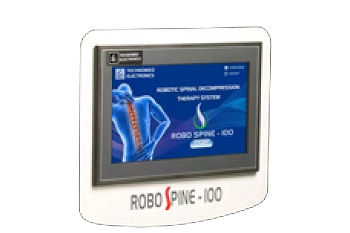

10.1 INCH COLOUR TOUCH PANEL

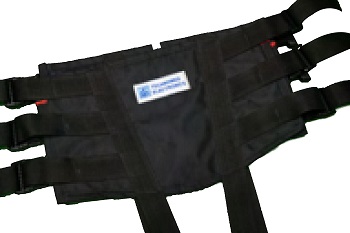

UNIQUELY DESIGNED BELTING

MOVABLE ARM

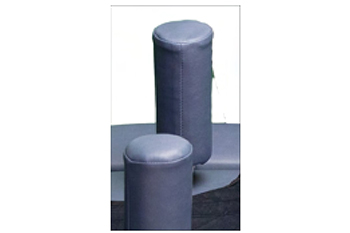

AXILLA POSTS

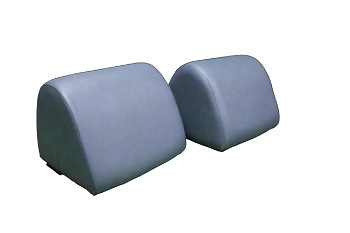

COMFORTABLE KNEE BOLSTERS

LOCKABLE WHEELS

ADJUSTABLE ARMREST

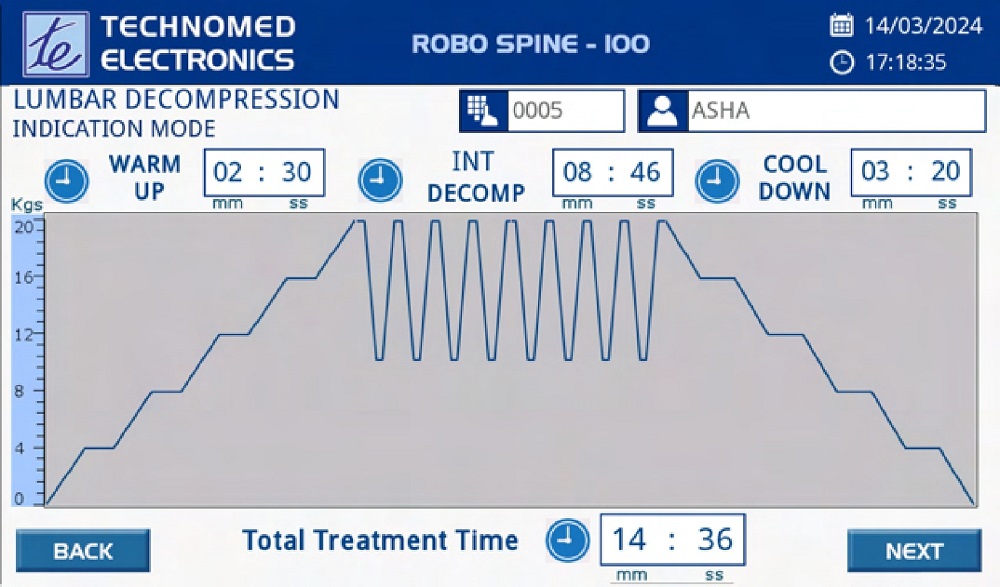

Lumbar Decompression

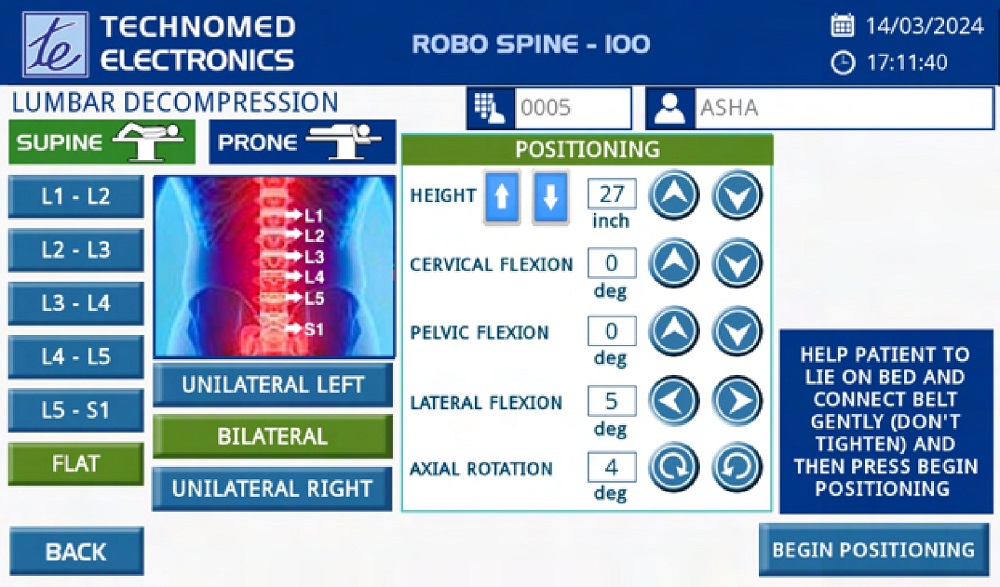

* Select Supine/Prone Mode depending on the Indication.
* Selection of Segment produces Pelvic Flexion.
* Selection of Unilateral Left/Right produces Lateral Flexion in opposite direction.
* Adjust Axial Rotation to unlock the facet joints.

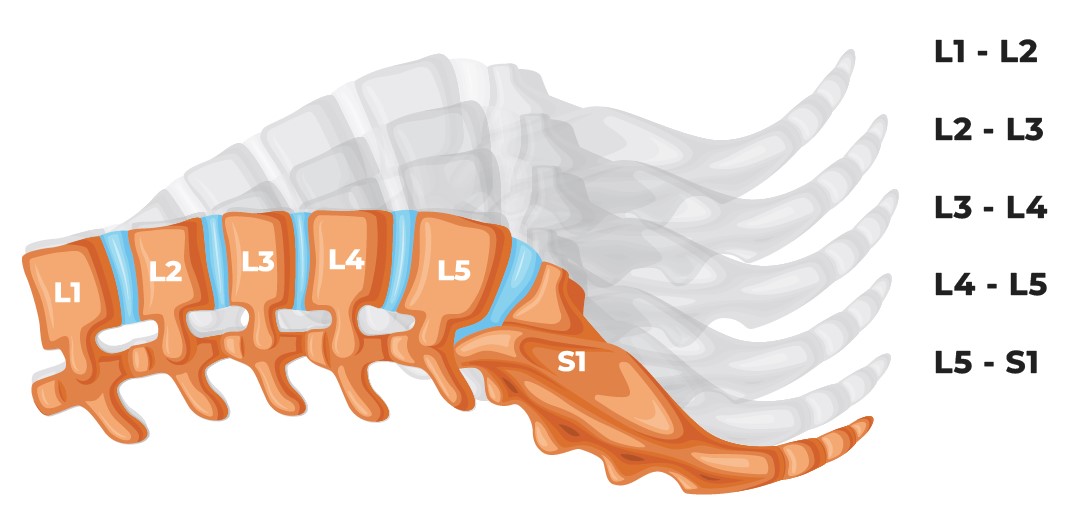

By Targeting the Lumbar Spine Precisely desired posterior/anterior tilt is produced in the spine as illustrated. This results in targeting the decompression force to the desired segment of spine.

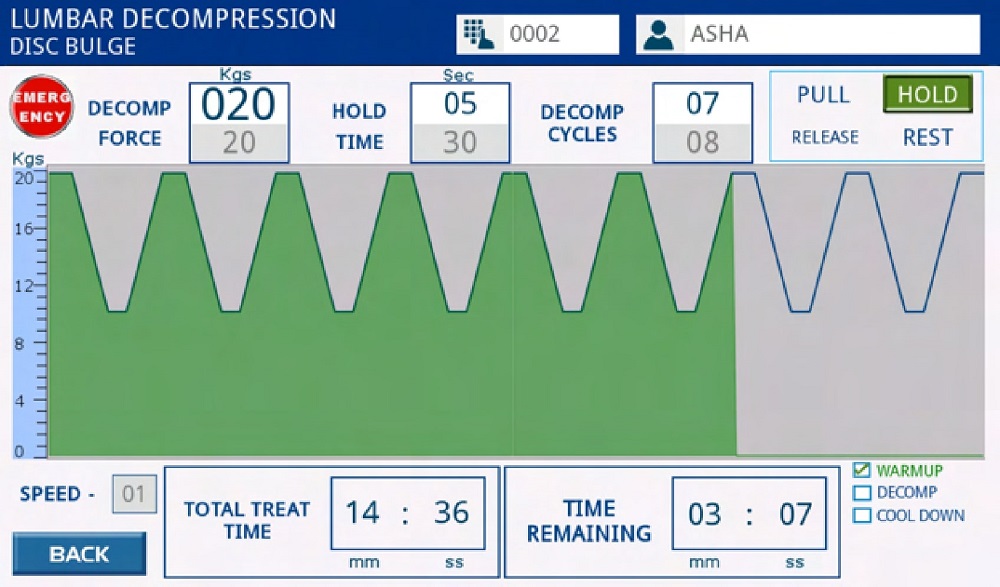

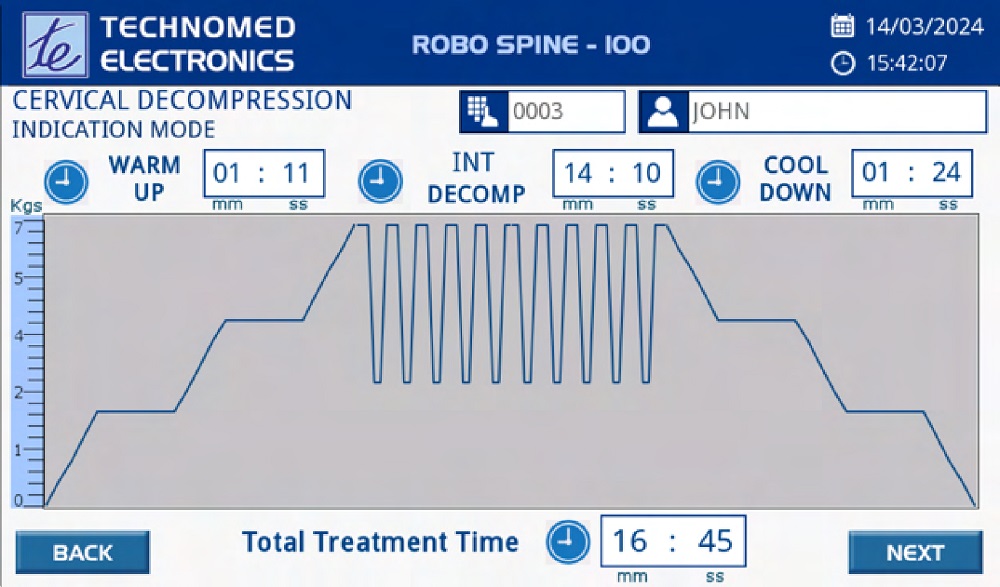

Gentle Controlled Decompression is done to reduce muscle spasms due to pull back effect of muscles. This results in pain free spinal decompression therapy.

Targeting Lumbar Spine

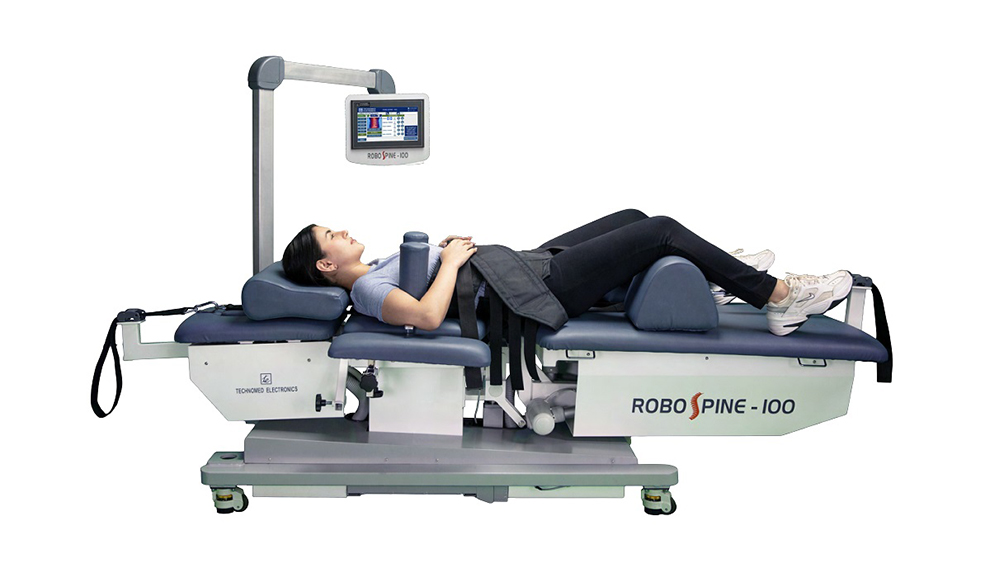

Robospine - 100 Positions

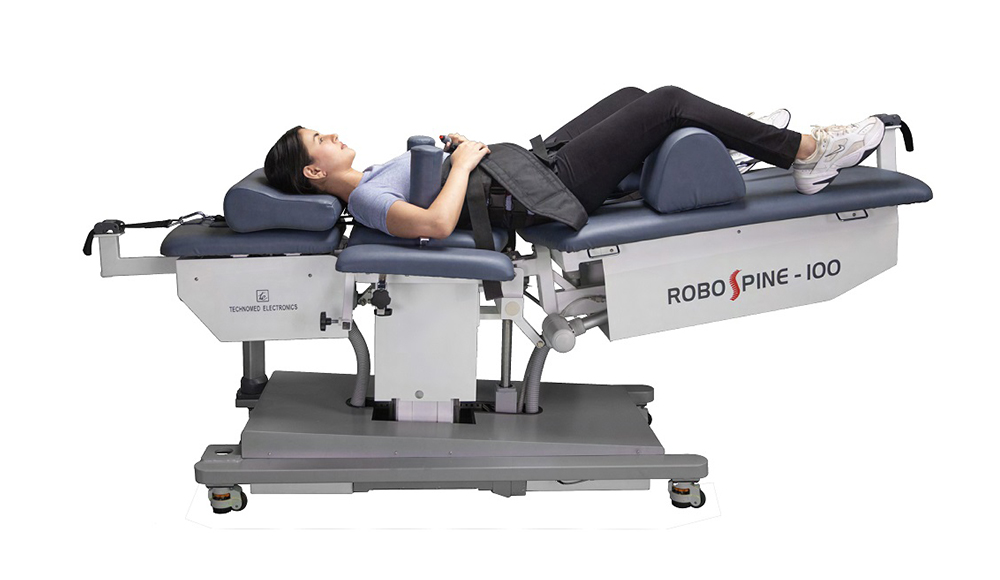

SUPINE POSITION

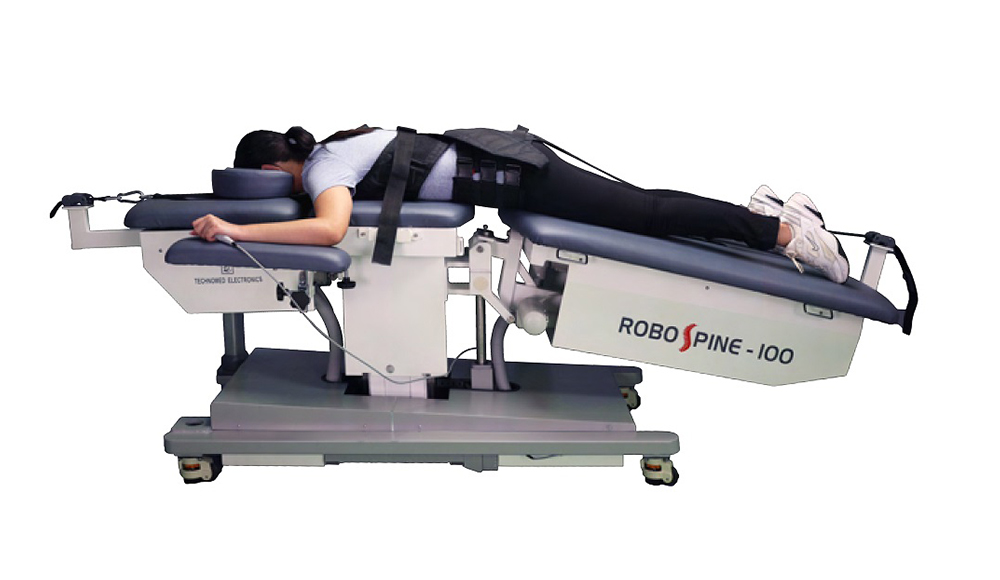

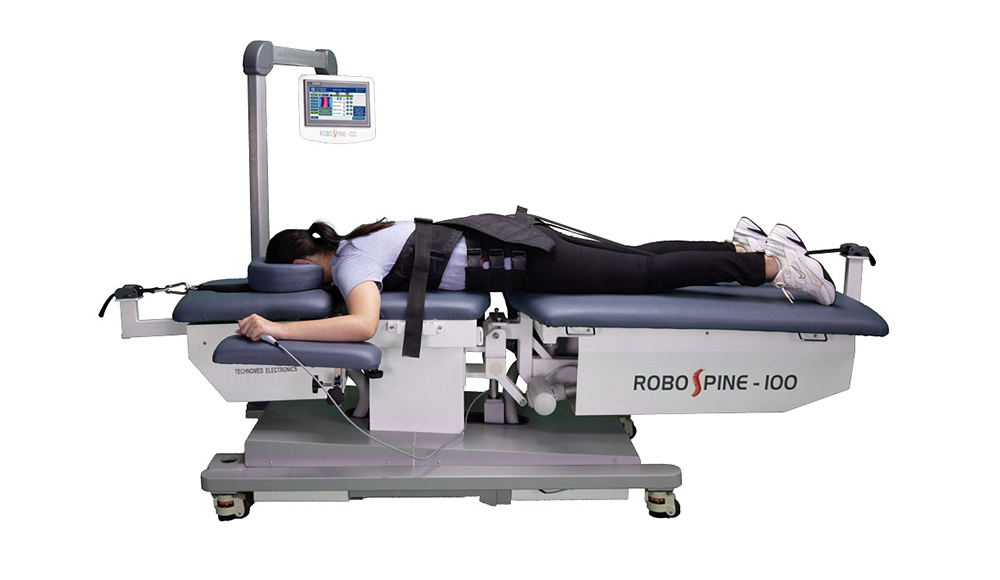

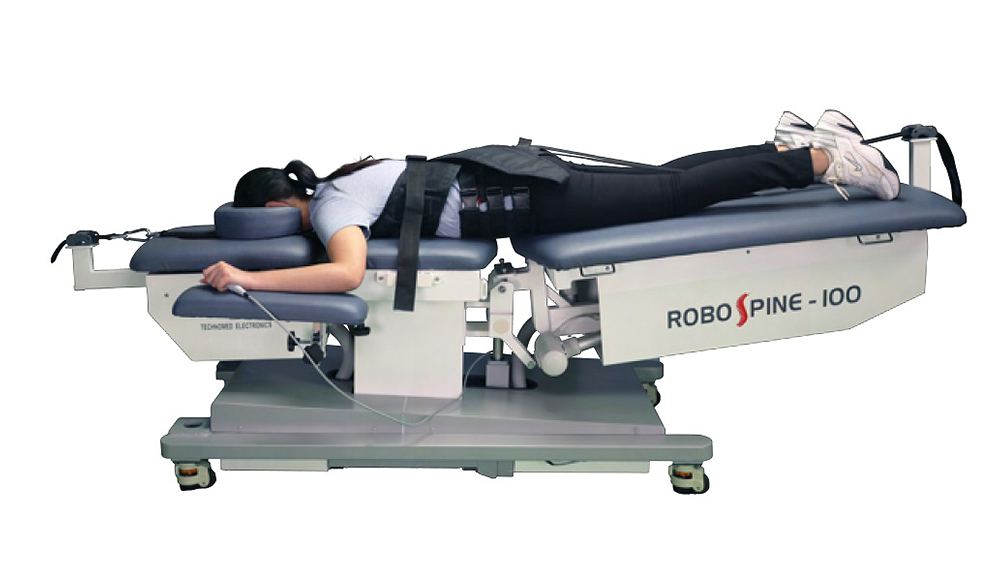

PRONE POSITION

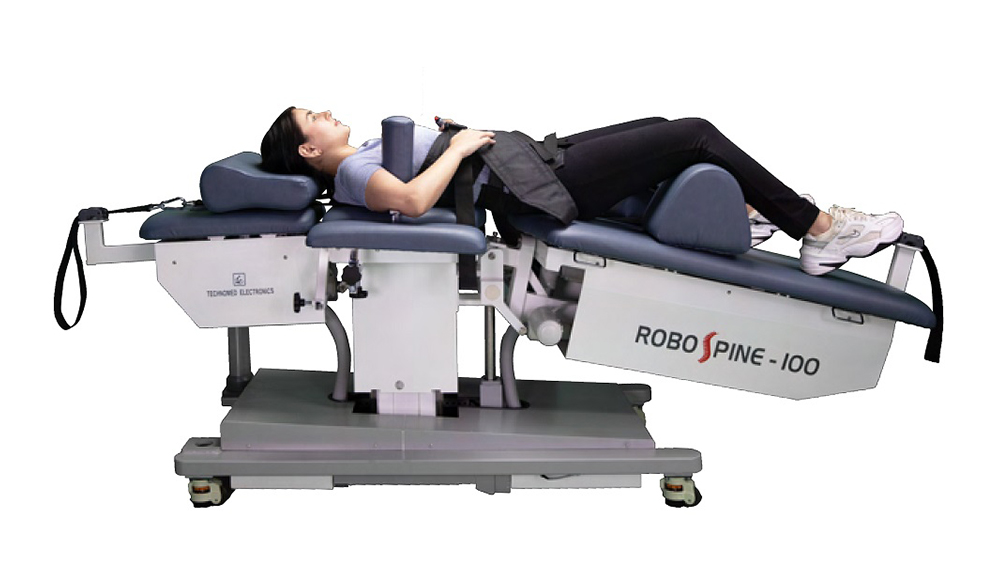

SUPINE FLEXION

SUPINE EXTENSION

PRONE FLEXION

PRONE EXTENSION

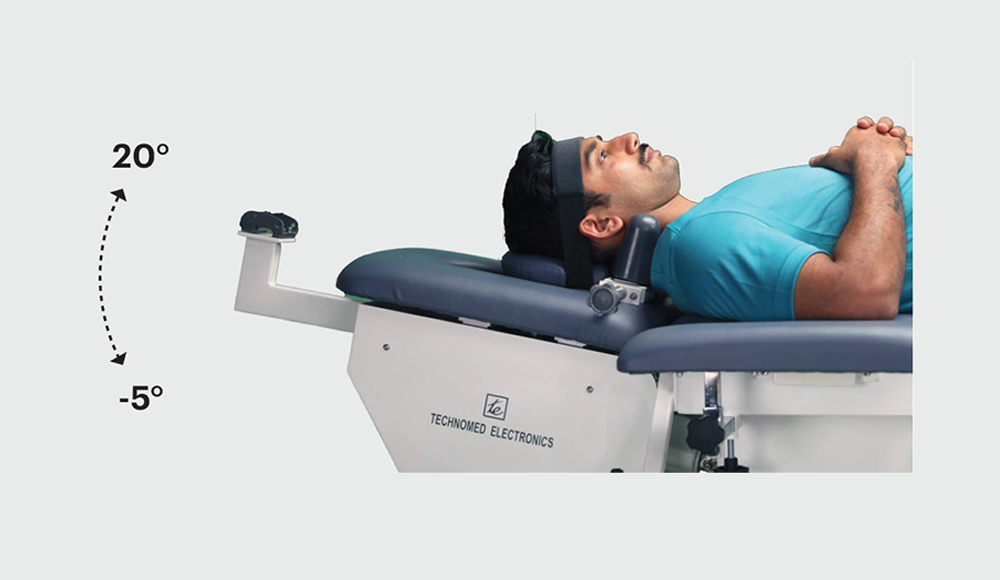

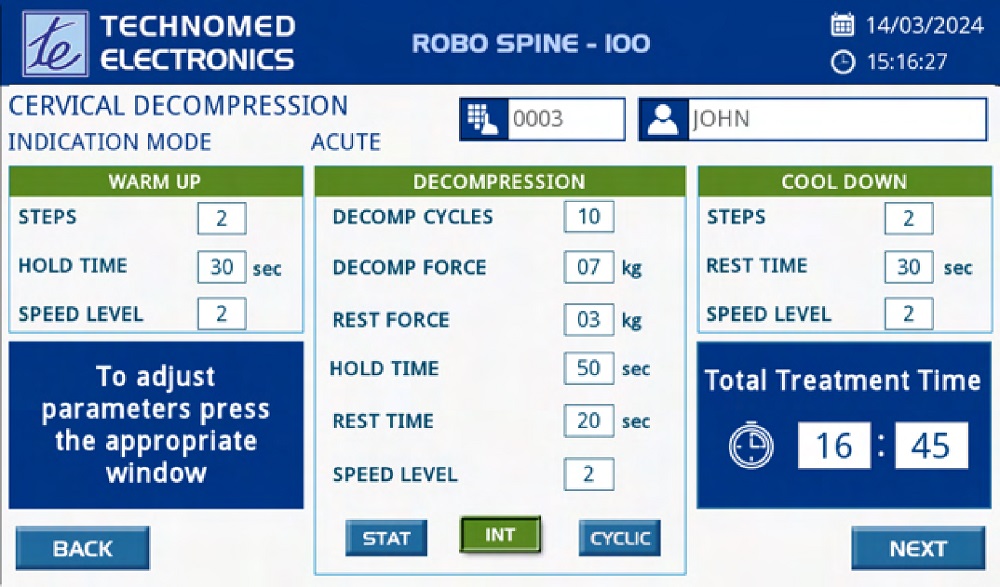

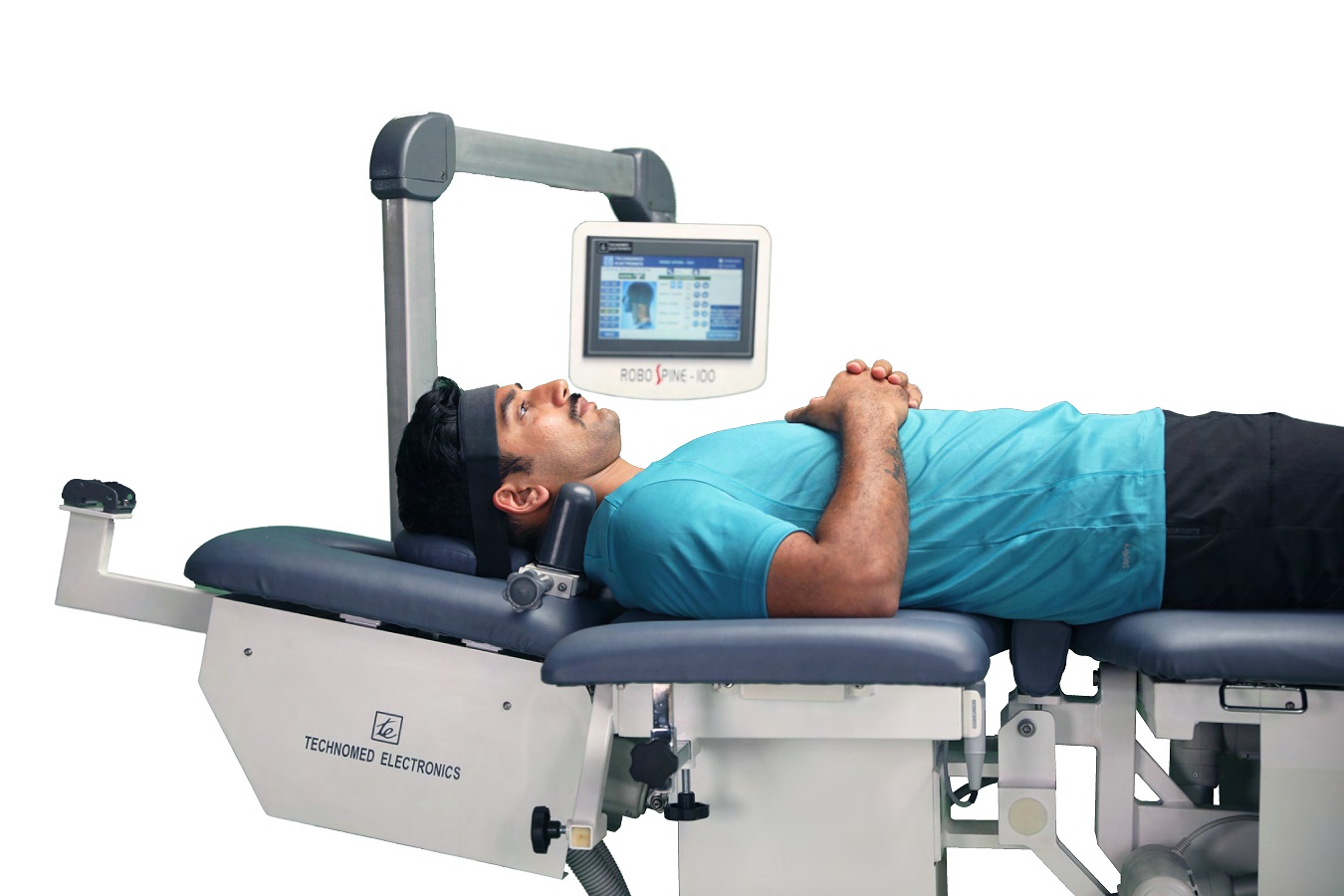

Cervical Decompression

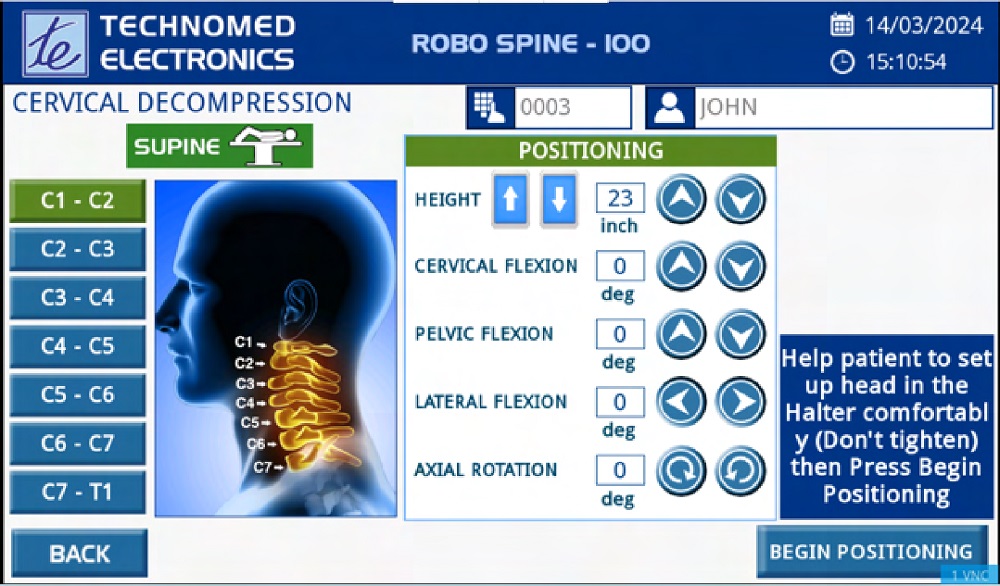

Separate Motorised Section for performing Cervical Decompression. Patient is connected to a soft Head Halter and it gently pulls the cervical spine. Precise targetingof Segment can be done in our Robotic System.

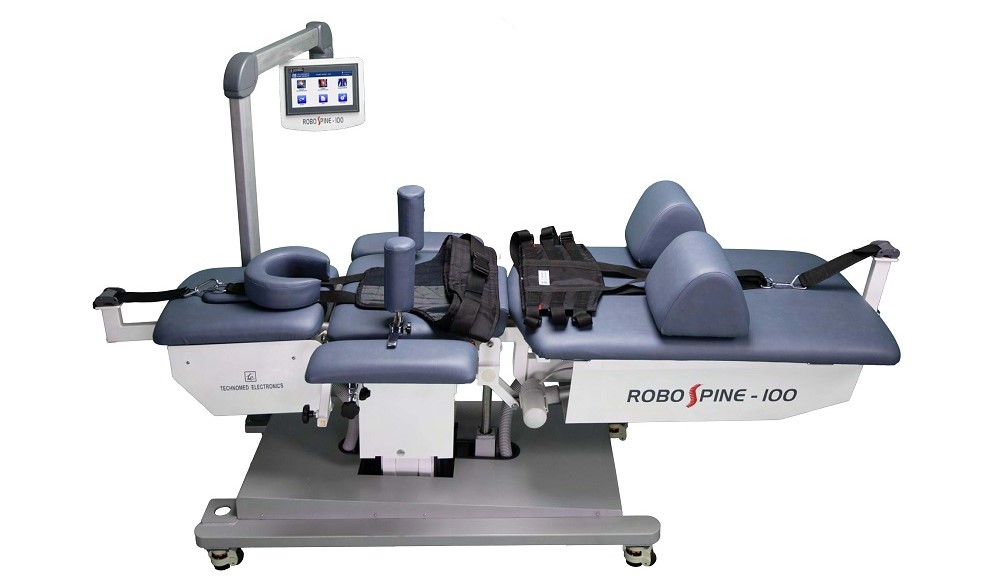

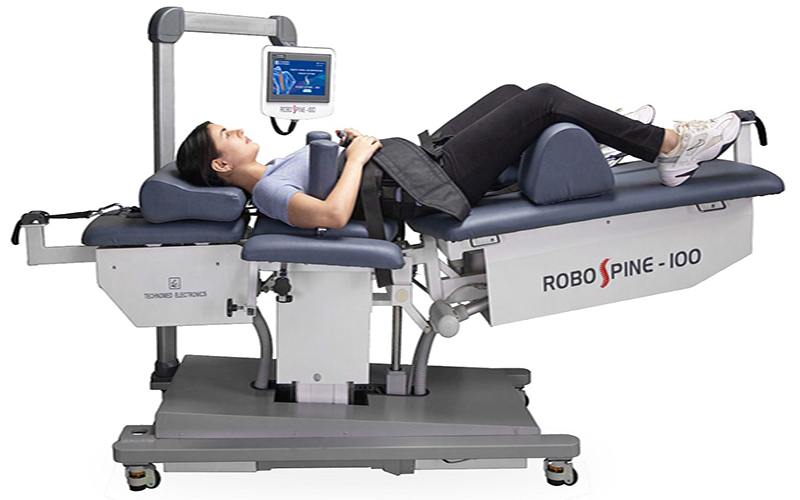

Robospine - 100

Robo Spine-100
