TECH LASER SS-2000

Home
Products
TECH LASER SS-2000

TECH LASER SS-2000

TECH LASER SS-2000

Advanced Scanning Laser Therapy

Myofascial Triggers

Soft Tissue Injury

Sports Injury

Diabetic Neuropathy

Post Operative Wounds

Non Healing Wounds

Ulcers and Bed Sores

Technical Specifications

LASER OUTPUT	Red 655nm 40 mW + IR 808 nm 200 mW
TOTAL OUTPUT	240 mW
Infrared Probe	808 nm 200 mW
Modes of Operation	Continuous and Pulsed
Pulse Frequency	0 – 5000 Hz
Treatment Time	0-99 min

Other Specifications

Input Voltage	180~240V AC, 50 Hz
Power Consuption	40 watts
L x B x H	26in x 23in x 66in
Weight	12 Kgs approx

Standard Accessories

1. Protective Goggles (2 Nos)

2. Meridian Point Detection Kit

3. Infra-Red Probe

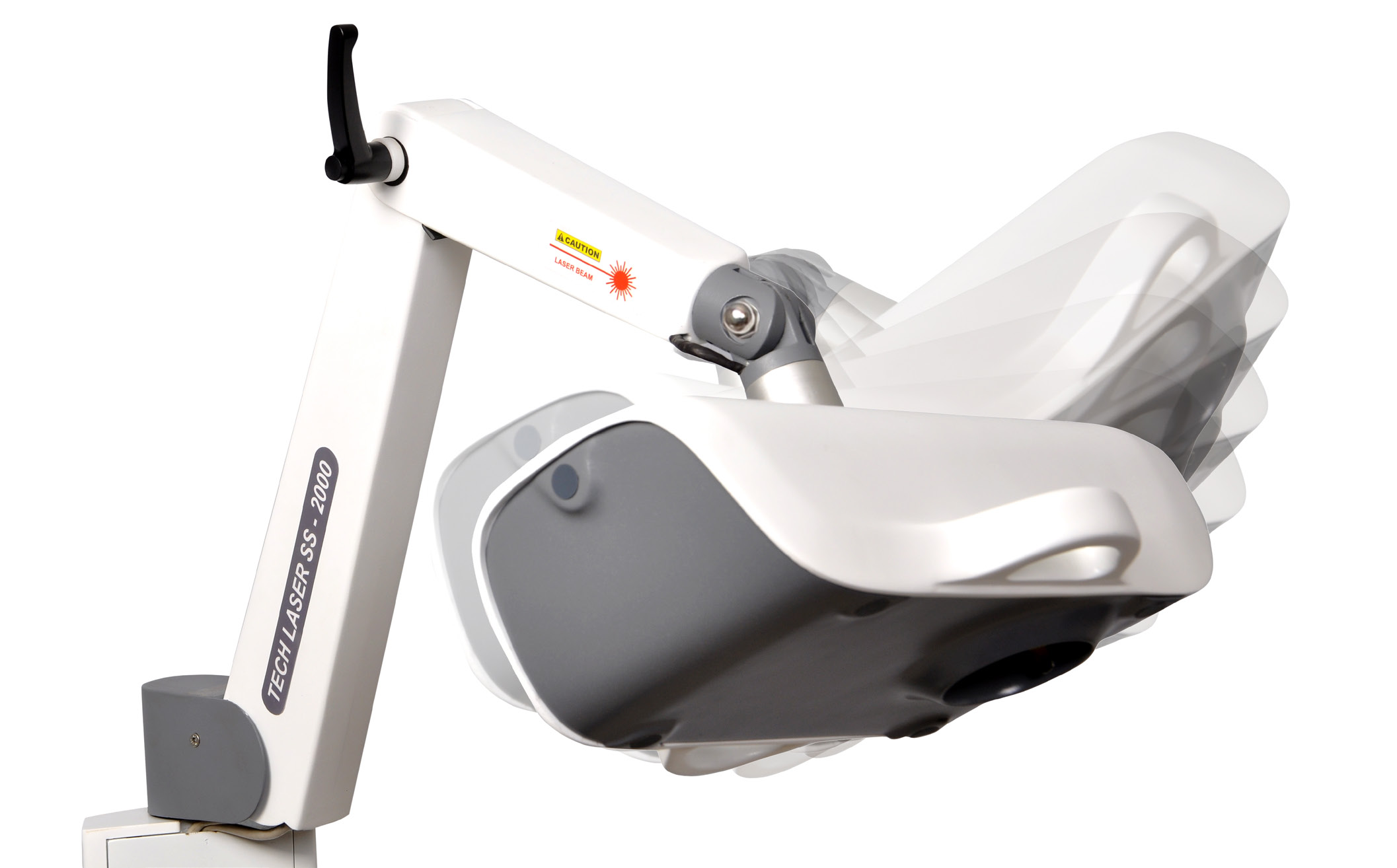

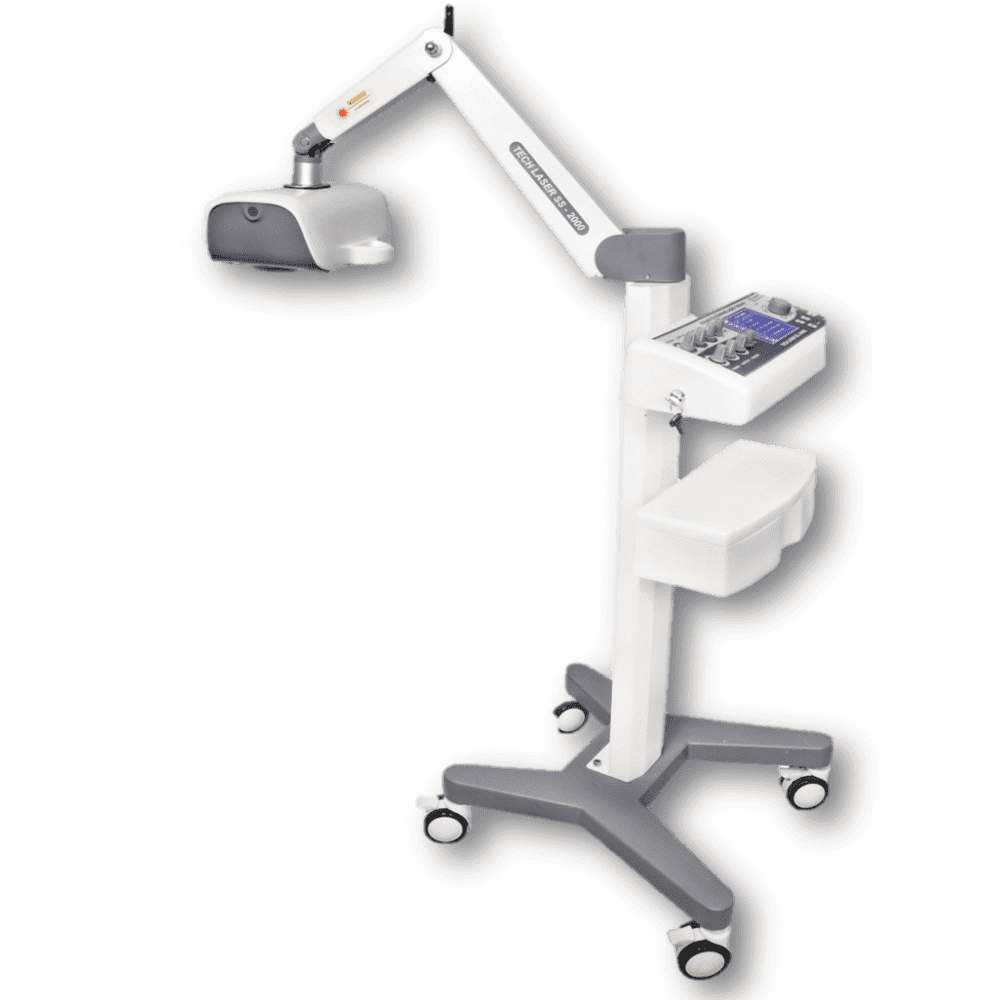

TECH LASER SS-2000 is an improvised Advanced Scanning Laser Therapy machine with easy adjustable arm which delivers a combination of RED and IR LASER through Scanning Laser. Scanning mode of treatment is very easy to use and very effective method of delivering even dose to multiple trigger points simultaneously. This eliminates the need for a doctor to hold the probe and stand next to patient for the entire treatment. Also, there is no need to move the probe from one trigger point to another.

Why Choose Low-Level Laser Therapy ?

Low-Level Laser Therapy (LLLT) is one of the most advanced therapies recognized worldwide for treatment of Chronic pain and non-healing wounds. LLLT works on cellular level promoting PHOTO BIO - MODULATION and repairs the damaged cells. Thus LLLT heals the Pain.

* LLLT is Sterile, Non Invasive, Non-allergic and has no side effects.
* LLLT can be used even on top of metal implants.
* LLLT is very safe to use with many electrotherapy modalities.
* LLLT does not block the pain it heals the pain.

Key Features

LCD Display

Big Crisp Graphic LCD Display enhances user experience

Key Operated

Key Operated Switch Prevents Unauthorized use

Safety Goggles

Laser Safety Goggles for Patient and Doctor

Advanced Technology

Advanced scanning LASER combining RED and IR Laser into single output and Delivered through Scanning Mode.

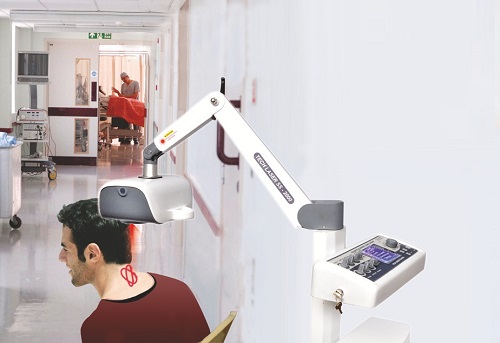

Relieves Strain on Operator

Most of pain management conditions can be treated in Scanning mode eliminating need for operator to stand with the patient holding the probe.

Selection of Dosage

Indications Based With 3 Levels – Acute/Sub Acute/Chronic for quick and easy selection of dosage.

Meridian Point Detection

Meridian Point Detection for identifying trigger points. Very useful to detect Acupuncture points and Meridian Points.

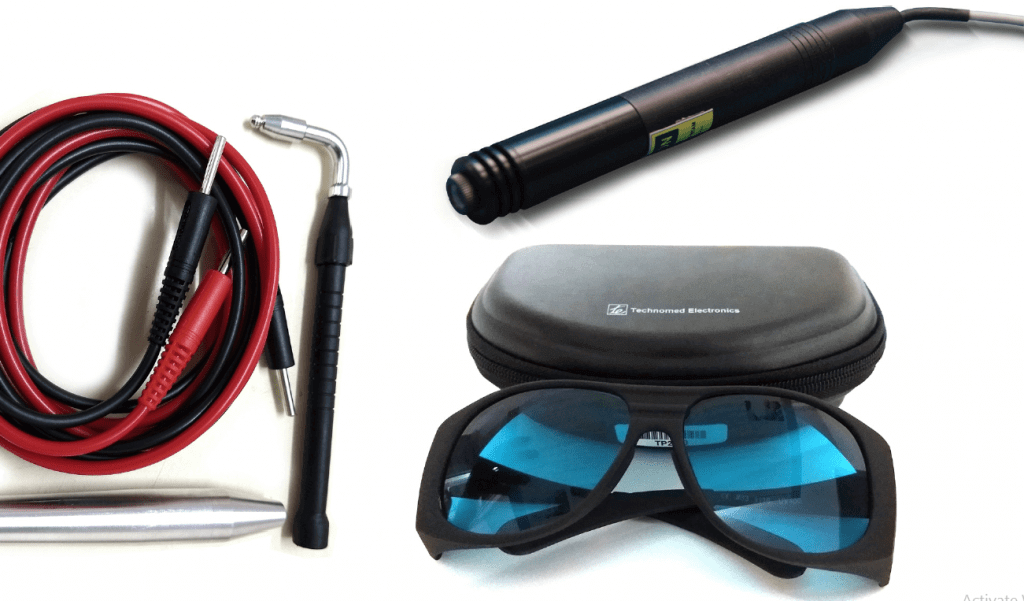

Accessories

1 Protective goggles (2 nos)

2 Meridian point detection kit

3 Infra red probe

Application of LLLT

Pain Management

Myofascial Triggers + Supraspinitis Tendinitis + Tennis Elbow + Low Back Pain + OA Knee Pain + Carpal Tunnel Syndrome + Sciatic Nerve Pain + Tempero-Mandibular Joint Pain + Costochondritis Pain + Post-Operative Pain + Plantar Fasciitis + Rheumatoid Arthritis Pain + Tendonitis + Sports Injuries + Radiculopathy Pain + Patellofemoral Pain + Achilles Tendinitis + Neuropathy + Neuralgia

DIABETIC CARE

+ Diabetic Wounds + Non Healing Wounds + Diabetic Neuropathy

WOUND MANAGEMENT

+ Bed Sores + Pressure Sores + Venous Ulcers + Surgical Wounds + Burns
