Technical Specifications

Angle

Extension

0 – 70 Degrees

Flexion

10 – 120 Degrees

Treatment Time

0 – 99 Minutes

Rest Time

1 – 5 Seconds

Other Specifications

Operating Voltage

+12 V AC, 500 mA

Power Consuption

50 W

L x B x H

102 x 27.5 x 9 cms

Weight

15 Kgs

Standard Accessories

Leather parts for Thigh, Calf and Knee

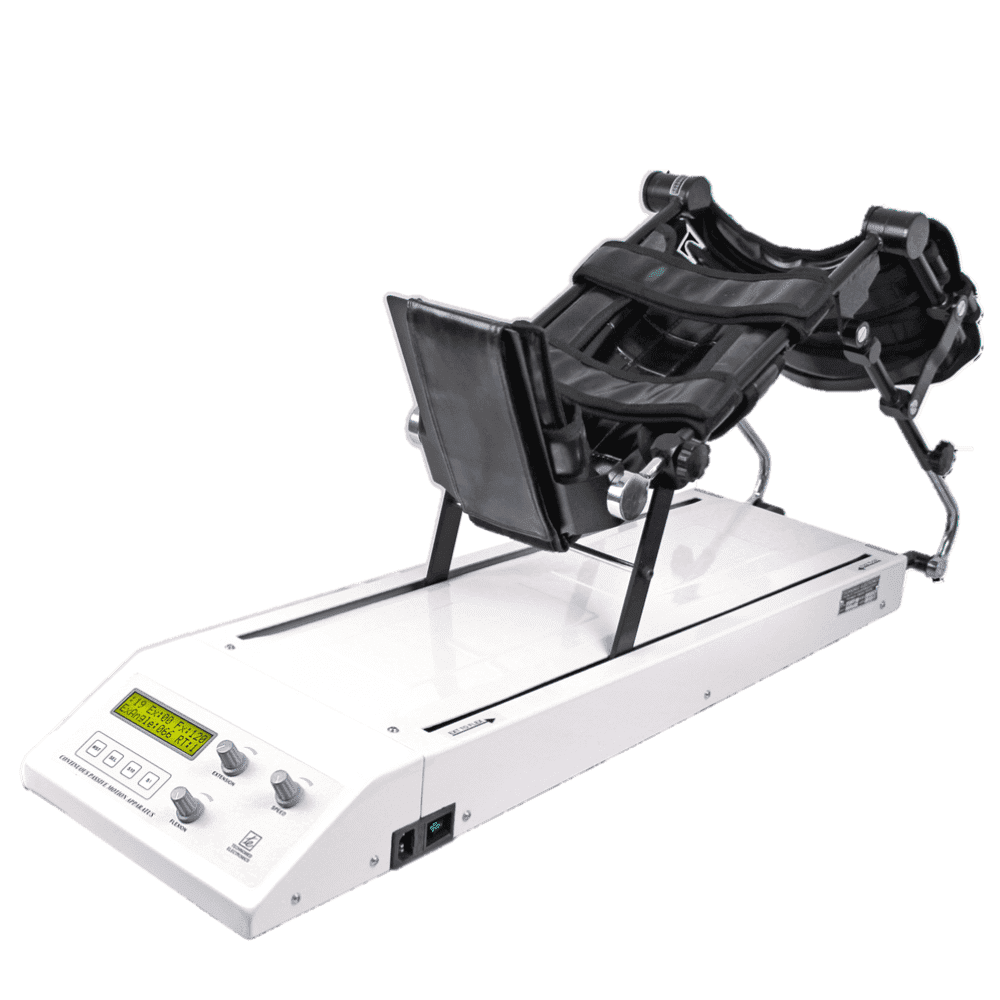

Tech CPM is a computerised Lower Limb CPM with digital control of flexion and extension angles with speed control feature. TECH CPM was designed to work as per the healing pattern of the patient post-operation. Initially smaller bending with low speed then gradually increase the speed and then angle day by day

To prevent stiffening, the joints have to be moved continuously which results in the following:

* Minimise swelling and pain after operation.
* Ensures faster recovery and shortened hospital stay.
* Prevents extra-articular contractures and adhesions.

Key Features

Digital setting

Our Digital setting of Flexion & Extension Angles allows even 1 Degree variation in Knee Position.

Patient Safety Switch

The patient can stop the machine by pressing the patient switch should there be any discomfort.

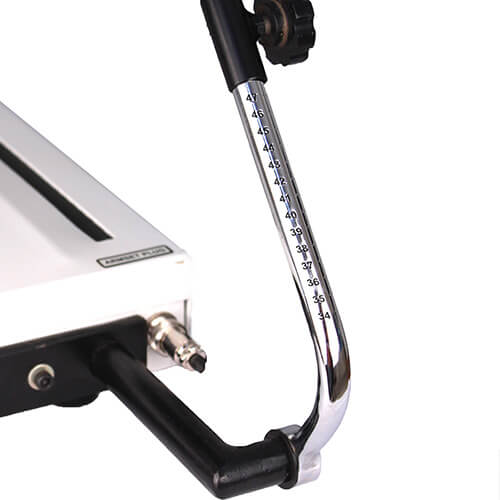

Height Adjustment

Two Height Adjustment Controls are provided to suit for tall to short patients with maximum comfort.

Speed Control

With very low speeds the patient can be made to bend the knee with minimum pain. Gradually speed can be increased.

Smooth & Silent Motor

Our CPM motor is very silent and powerful hence can be used also in silent environments like post operative wards.

Tech CPM

Tech CPM

Tech CPM

Lower Limb Continuous Passive Motion Aparatus
