Highest Degree of Safety Measures

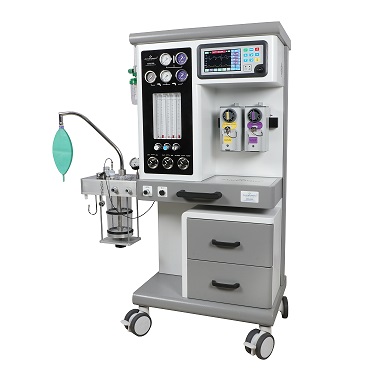

Integrated Ventilator for Advanced Care
Precision and Efficiency with Motorized Bellow
Accurate Anesthesia gas and drug delivery systems
| Mode of Operation | VCMV, V- SIMV, PCMV, P-SIMV,PRVC, PSV, BAG and Standby |
| Patient Type | Adult and Child [Selectable] |
| Tidal Volume | 50 to 1500 ml. |
| Ti | 0.2 to 8.0 Sec |
| Pi | 5 to 60 cmH2O |
| Respiratory Rate | 1 - 30 minutes in 1 minute increments (End of treatment time automatically cut off) |
| Plateau | 0 to 50% |
| PEEP | 0 to 30 cmH2O |
| Pressure Support | 5 to 40 cmH2O |
| Trigger | 0.5 to 5.0 cmH2O |
| Backup | RR 6 to 60 Bpm |
| Backup Mode | VCMV, V- SIMV, PCMV, P-SIMV and PRVC |
| Monitoring Parameters | Tidal Volume, Minute Volume, RR, FIO2, Pi, PEEP Obtained. |
| Loop Types | Flow Vs Pressure, Flow Vs Volume & Volume Vs Pressure [Selectable Any Two] |
| Graph Types | Flow, Pressure & Volume [Selectable Any Two]. |
| Inspiratory Pressure High | 10 to 60 cmH2O |
| Inspiratory Pressure Low | 5 to 15 cmH2O |
| Minute Volume High | 3 to 50 Liters |
| Minute Volume Low | 0.1 to 47 Liters |
| RR High | 15 to 100 Bpm |
| RR Low | 5 to 90 Bpm |
| FIO2% | 21 to 100 |
| Alarms | Low and High for Pressure, RR, Minute Volume and FIO2, Active patient, Patient disconnected, Oxygen Pressure Low, low battery indication, Apnea. |
| Display 7" TFT with touch Screen. |
| Power Input 90 to 260 V AC 50Watts 50/60 Hz |
| Pipe Line Inlet O2, N2O & Air 2.4~6 Bar |
| Cylinder Inlet O2 & N2O 150 Bar Max |
| Battery Backup 2 hours (Lithium-ion) |
Alveonic ADS-300 is an advanced solid-state technology based on Continuous and Pulsed shortwave diathermy Machine. This machine has most advanced features to facilitate quick and effective treatment of the patient.
The latest advancement in shortwave therapy is PULSED MODE. In Pulsed Mode heat build-up is eliminated. Hence the chances of patient developing burns and blisters are eliminated. The patient feels a soothing warm sensation throughout treatment. At even lower Pulsed levels negligible warmth is felt which is very safe for treating diabetic and geriatric patients.
The machine also has a CONTINUOUS mode to produce strong thermal effects. As the quality of output is much better due to solid state technology the heat build-up happens gradually and hence even more comfortable and safer on patients.

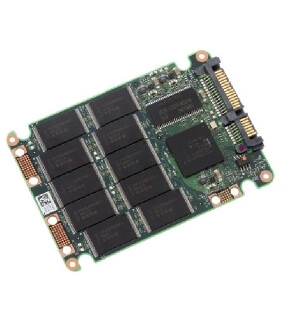

Developed using advanced solid-state electronics. The machine produces pure 27.12 MHZ shortwave output. The highly power efficient and robust solid-state power electronics can produce ripple free pure wave form.

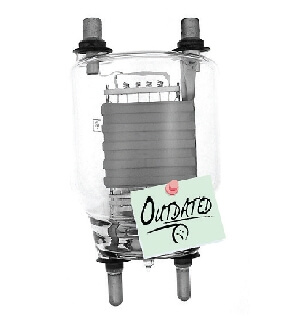

Conventional shortwave machines in the market use Radio frequency valves. Valve model shortwave besides being fragile and having non-repairable parts, the technology is obsolete.

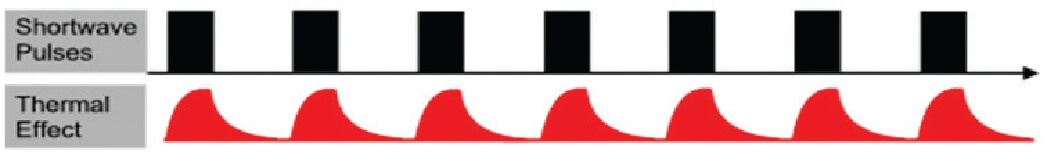

The continuous build-up of heat is not desirable. Without control, if heat keeps on increasing it can lead to burns and blisters. Real challenge particularly in treating diabetic patients. Pulsing shortwave at different desired levels gives the comfort of warmth like waves and prevents a continuous build-up of heat. The latest advancement in shortwave therapy is PULSED MODE. WAVESTAR 300 produces pulsed shortwave. There is an element of tissue heating which occurs during the ‘on’ pulse, but this is dissipated during the prolonged ‘off’ phase.
Treatment with no net increase in TISSUE TEMPERATURE
Digital Display of Output Power for accurate and easy setting of power.
3 Different Pulse Frequencies settings for delivering the right mount of dose to the patient.
Attractive and user friendly tuning system with Illuminated bar graph for quick and easy tuning..
Continuous mode for Deep Heating particularly useful for disc electrodes.
Colour coded Power Adjustment knob to select a-thermic treatment, mild heat or deep heating.
Trolley model for easy mobility in hospital/clinic.
